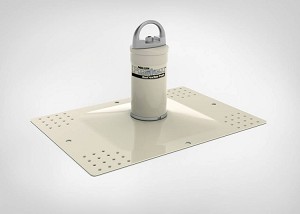

Miller Honeywell Fusion X10020 Multi-Purpose Metal Sheathing, Wood and Concrete Roof Anchor Post
Zoom in on Image(s)
Email a friend
Miller Honeywell Fusion X10020 Multi-Purpose Metal Sheathing, Wood and Concrete Roof Anchor Post
Your Price:
$634.96
Miller Honeywell Fusion X10020 Multi-Purpose Metal Sheathing, Wood and Concrete Roof Anchor Post
Part Number:
24511
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Product Resources
Features
Resources
Miller Honeywell Fusion X10020 Multi-Purpose Metal Sheathing, Wood and Concrete Roof Anchor Post
Post with base (no hardware included). Hardware selection is based on the application - refer to instruction manual for specifications
Metal sheathing w/minimum thickness of 24 gauge (0.024 in.). Trapezoidal spacing of 8-in. to 20-in. (20 cm - 50.8 cm) in one-inchincrements. Plywood with minimum thickness 5/8-in. (15.9 mm) CDX. Concrete decking with minimum thickness of 6.5-in. & minimum concrete compressive strength of 3000 PSI (20.7 MPa)
Multi-Purpose Metal Sheathing, Wood and Concrete Design
This multi-purpose post uses the same base as models X10011, X10040 and X10050
Miller specified hardware must be purchased for this base. (This model does not include hardware)
Features
Significantly reduces the fall forces on the roof structure – In the event of a fall, the top of the Miller Fusion Roof Anchor Post reorients with the force in a direct line and activates the patent-pending energy absorber.
Durable design that withstands the changing outdoor environment – Internal components are made of stainless steel
Double coating for extra protection – The steel post and base are plated with zinc followed by a premium powder coating for two layers of protection
Versatile single-point anchor adapts to a wide range of roof designs
Models for steel decking, concrete and wood can be used on other non-roof structure
Applications
Roof inspection and maintenance
Air conditioning, ventilation fan and solar panel maintenance
Skylight cleaning
Debris removal from gutters
Installation and maintenance of satellite dishes and other communication systems
Literature and Documents
I302 Fusion Roof Anchor Posts User Manual
Miller Fusion FAQ
OSHA Letter distributor final 2013
Miller Fusion Brochure
SP452 Fusion/Shock Fusion Technical Data Sheet
