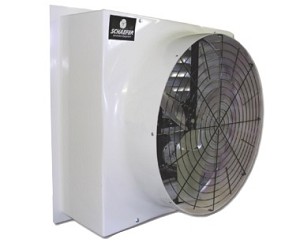

Schaefer FFM485G1-3 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP
Zoom in on Image(s)
Schaefer FFM485G1-3 Narrow Belt Drive Fiberglass Exhaust Fan 48 Inch 1 HP
Email a friend
Schaefer FFM485G1-3 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP
Your Price:
$2,206.40
Schaefer FFM485G1-3 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP
Part Number:
10428
Put me on the Waiting List
Quantity
+
-
Add to Cart
Submit
product tabs
Description
Product Resources
Features
Specifications
Choose Options
Resources
48" Fiberglass Belt Drive Exhaust Fan, 5-Wing Galvanized Blade, 1 Hp, 3-Phase
Schaefer FFM485G1-3 Fiberglass Narrow Belt Drive Exhaust Fan 48" 1HP
Schaefer FFM485G1-3 exhaust fans are utilized worldwide for exhausting high air volumes at low cost.
Schaefer has learned from the agricultural industry to design & build the highest efficiency (high cfm per watt) long lasting, competitively priced exhaust fans for many different applications. These high quality fans are used in factories, garages, warehouses & other locations where the building owner values low capital & operating cost.
Engineered for high efficiency & airflow
Fiberglass housing has a 15 year warranty
Thermally protected motors are totally enclosed for longevity and safety
Ships fully assembled withAluminum shutters with minimized ?apping for better efficiency
Permanently sealed, pre-lubricated ball bearings
Self adjusting belt tensioner
Simple belt replacements and maintenance
(Optional) remote lubrication system
Suitable for wall thickness up to 12"
Schaefer FFM485G1-3 Fiberglass Exhaust Fans Easily Mount Into Walls With A 12 Inch maximum Thickness
Schaefer FFM485G1-3 Features
Flush mount fiberglass belt drive exhaust fan
Mounts inside wall 12 inches maximum thickness
48 inch diameter
3 Phase 1 HP motor
Galvanized steel fan blades - 5 wing blade style
2 year warranty
USA Made
Schaefer FFM485G1-3 Features A Powder Coated Outlet Guard
Schaefer FFM485G1-3 Specifications
Motor
1 HP - 3 Phase
Blade Style
Galvanized steel - 5 wing
Voltage
208 - 230 / 460
Amps
3.2 / 1.6
Rough In (W x H)
55.75 x 56.25 inches
CFM at .05" S.P.
22.365
Warranty
2 years
Choose Options
Remote Lubrication Kits
REMOTELUBE-KIT - Field Installation Remote Lubrication System [+$120.00]
REMOTELUBE-INST - Factory Installed Remote Lubrication System [+$120.00]
